| Scanner typeManual | Scanning element2D image | Scanning speed100 scans/sec |
| Connection typeWired | Scanner resolution1280(h)х1080(v)Px | Scanning coverage angle38.5º(h)x32.5º(v) |
| Barcode SensitivityTilt ±65° / Rotate 360° / Roll ±60° | Minimum barcode contrast20% | Reading barcodes1D, 2D |

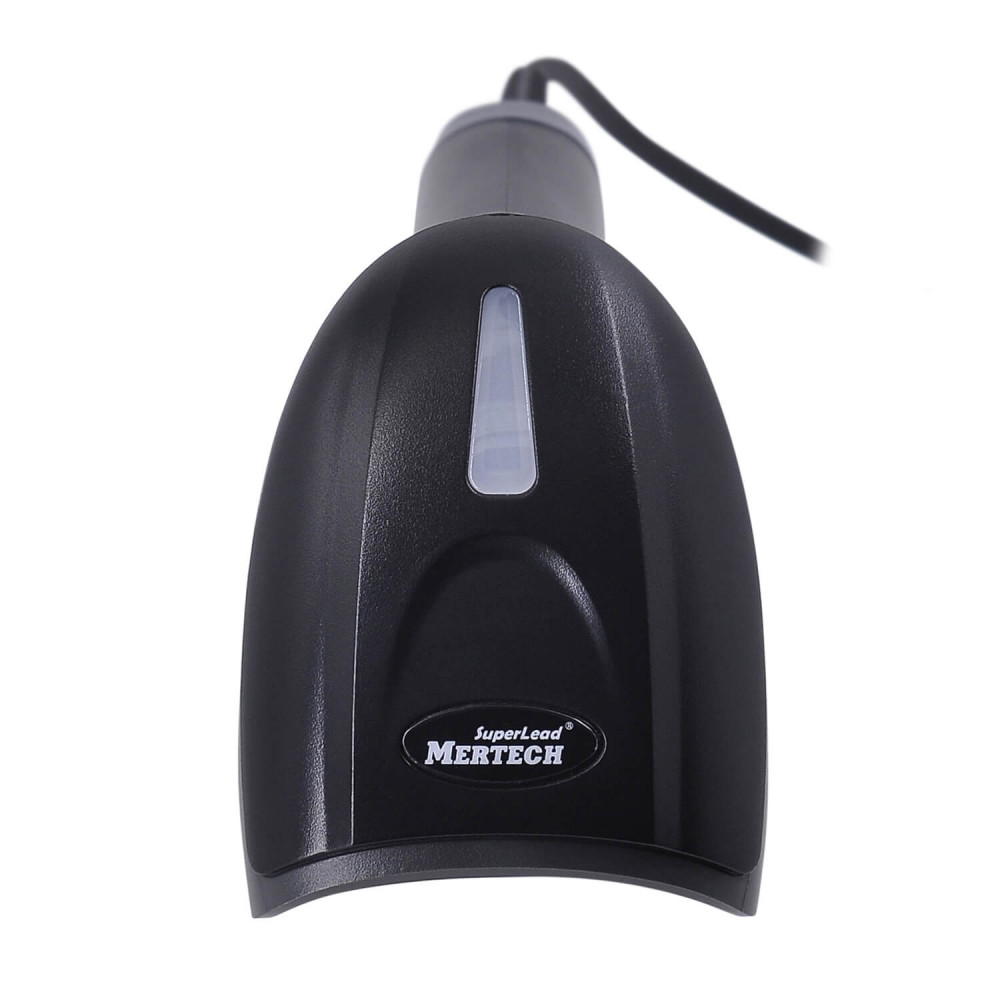

MERTECH 2310 is a wired handheld scanner. The device recognizes all known 2D and 1D barcodes. Label scanning is conducted using SUPERLEAD technology.
Technical Specifications
The housing of the device is made of shock-resistant plastic and polycarbonate. Plastic color: black. Dimensions of the reader: 170*95*70 mm. The device weighs 125 grams. Multiple drops from a height of 2 m do not affect the operation of the electronic components. The level of protection of the housing against external influences: IP54.
Main characteristics of the MERTECH 2310:
- Distance for label recognition: 57 cm.
- Scanning speed of 100 scans/sec.
- Scanning module with a resolution of 1280*1080 pixels.
- Field of view: 38.5°x32.5°.
- Trigger resource: 5 million activations.
- Sensitivity: tilt 65°, rotation 360°, deviation 60°.
- Minimum reading resolution: 3.9 MIL.
Connection to an online cash register, smart terminal, or computer is via USB-HID. USB-COM and RS232 interfaces are also optionally available. The device connects to online cash registers such as Atol Sigma, Evotor, Shtrih-M, Mercury, and other well-known brands.
Model Advantages
The wired scanner was specifically designed for the E-Mark system. The device complies with the requirements of EGAIS and FGIS. Compliance with the stated requirements is confirmed by testing results.
Benefits of the MERTECH 2310 reader:
- Red LED backlighting for barcodes 617K.
- Recognition of barcodes with 20% contrast.
- Scanning of damaged labels.
- Recognition of data from complex surfaces.
- Automatic activation when presenting a barcode.
- Reading temperature: from 0°C to 50°C.
- Warranty period: 3 years.
You can purchase a wired 2D barcode scanner with delivery across Armenia. When ordering on the MERTECH website, low prices from the manufacturer apply. You can arrange delivery to your company's address or pick up the goods at the pickup point.
To buy 2D scanners, send an inquiry or call the phone number. A manager will respond and help you select equipment for your business, organize payment, and arrange delivery of your purchase.
| Scanner type | Manual |
|---|---|
| Scanning element | 2D image |
| Scanning speed | 100 scans/sec |
| Connection type | Wired |
| Scanner resolution | 1280(h)х1080(v)Px |
| Scanning coverage angle | 38.5º(h)x32.5º(v) |
| Barcode Sensitivity | Tilt ±65° / Rotate 360° / Roll ±60° |
| Minimum barcode contrast | 20% |
| Reading barcodes | 1D, 2D |
| Scanning range | Up to 570 mm |
| Number of triggers without failures | 5 million |
| Sound and visual indication | Yes |
|---|---|
| Supported 1D barcodes | UPC; EAN; Code128; Code 39; Code 93; Code11; Matrix 2 of 5; Interleaved 2 of 5; Codabar;MSI Plessey; GS1 DataBar; China Postal; Korean Postal |
| Supported 2D barcodes | PDF417; MicroPDF417; Data Matrix; Maxicode; QR Code; MicroQR; Aztec; Hanxin |
| EGAIS support | Yes |
| Automatic scanning | Yes |
| Recognizing barcodes from complex surfaces | Yes |
| Support Honest SIGN | Yes |
| Backlight | Red, 650nm LED |
|---|
| 5 MIL | 0-200 mm |
|---|---|
| 13 MIL | 0-280 mm |
| Minimum scanning resolution | 3 MIL |
| Guarantee | 3 years |
|---|---|
| Resistance to external influences | IP54 |
| Analogues of manufacturers | Proton, Cipherlab, Globalpos, Urovo, Idzor, Mypos, Poscenter, Cino |
| Storage temperature | -40°С ~ +70°С |
| Permissible humidity | 0% ~ 95% |
| Application areas | For EVOTOR, For shoe marking, For 1C, For SBIS, For alcohol, For pharmacy, For cigarettes, For perfume, For EGAIS, For warehouse, For store, For marking, For Honest Sign, Industrial |
| Operating temperature | -20°С ~ +40°С |
| Drop test | Withstands 50 drops from a height of 2 m onto a concrete surface or multiple drops from a height of 1.5 m. |
| Interface | USB-HID; USB-COM - emulation; RS232 - optional |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 170*95*70 |
| Body material | ABC + PC (plastic + polycarbonate) |
| Weight | 125 gr |
| Interface cable | USB |
|---|---|
| Gross weight, g | 300 |
| Box dimensions, mm | 180*75*105 |
| Equipment | Scanner, USB type A cable (205 cm), Manual, Warranty card, Packaging |
-
