| Type of scalesPackaging | Discreteness2 gr | Minimum weight40 gr |
| Number of keys4 | Weighing limit15 kg | Platform size300*200 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |

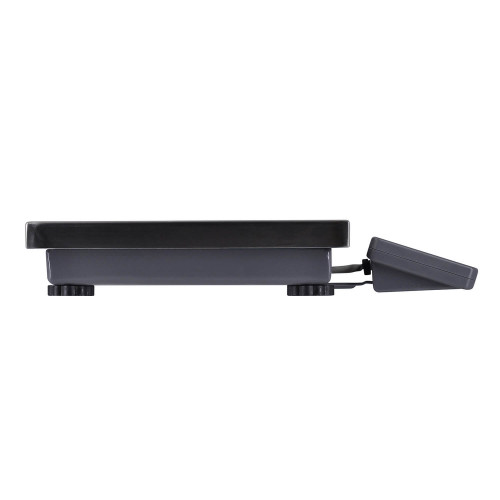

The M-ER 224 FU-15.2 STEEL LCD USB desktop scale without a battery is used for weighing goods. The weighing equipment can only operate from the mains, with power supplied via a USB COM cable. The absence of a battery helps reduce the weight and lower the price of the device.
Advantages of the Model
The weighing equipment is suitable for weighing products up to 15 kg. The scale division is 2 grams. The packaging model meets class III accuracy according to GOST. Each device undergoes verification. The package includes a certificate confirming the stated parameters.
The device is suitable for production, warehouses, or stores with a stable connection to the network. The body is equipped with a weighing platform of reduced area.
Advantages of the packaging model:
- CAS-M (Passive) and POS2-M data exchange protocols;
- weighing in kilograms or pounds;
- an advanced load cell rated for 7,000 units;
- reliable overload protection system.
The equipment can weigh goods in normal mode or with fixed weight. Visual and auditory effects simplify the operator's work. The firmware includes a self-diagnostic algorithm.
Construction Characteristics
The construction is based on a sturdy metal frame. The device's body is made from plastic and metal. The weighing platform is entirely made of stainless steel. The design of the scales is protected from accidental water and dust ingress, as well as from strong impacts.
The M-ER 224 FU-15.2 STEEL model features a reduced platform size of 300*200 mm. A large table is not required for setup. The equipment can be placed in a restricted area.
There is a sealed control panel on the body. The electronic scales can be operated using 4 buttons. The control panel is equipped with an LCD screen with 5 digits of indication.
You can purchase the electronic scales on the MERTECH website. The lowest prices from the manufacturer are available for purchases made on the site. Delivery of the equipment is performed throughout Armenia.
| Type of scales | Packaging |
|---|---|
| Discreteness | 2 gr |
| Minimum weight | 40 gr |
| Number of keys | 4 |
| Weighing limit | 15 kg |
| Platform size | 300*200 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | No |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 300*280*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 3.15 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
