| Type of scalesPackaging | Discreteness5 gr | Minimum weight100 gr |
| Number of keys4 | Weighing limit32 kg | Platform size325*275 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |
The M-ER 224 F-32.5 STEEL LCD USB packing scales without a battery operate only from the mains. They are suitable for use in premises with a stable electricity connection. The refusal to install a battery helps reduce the weight of the device and lower the price. The scales can be used for weighing goods in a warehouse, at a factory, or in a store for control weighing.
Advantages of the Model
This tabletop model is designed for weighing goods with a maximum weight of 32 kg. The division price during operation is 5 grams. The model belongs to class III of accuracy according to GOST for the declared characteristics. The measurement accuracy is confirmed by a calibration certificate.
Advantages of the packing model:
- operation according to CAS-M (Passive) and POS2-M protocols;
- switching between kilograms and pounds;
- sensitive load cell with 7,000 divisions;
- reliable protection against short-term overloads;
- double galvanization of steel parts.
The control menu supports two basic programs: simple weighing and weight fixation. Light and sound signals help monitor the working process. The device features a self-diagnostic system.
Structural Characteristics

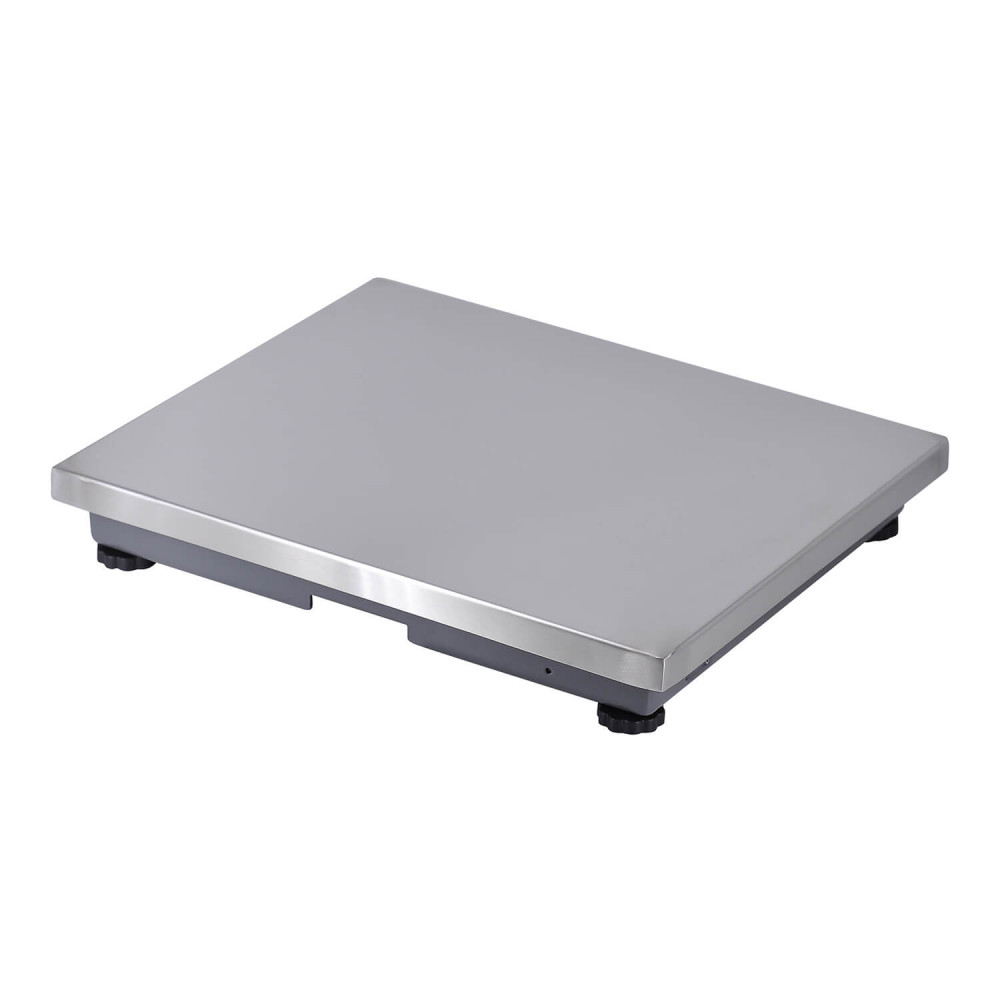

The foundation of the device is a strong and stable metal frame. The assembly of the body is carried out using metal and plastic panels, and the weighing platform is made of stainless steel. The platform, measuring 325*275 mm, can weigh large batches of goods. Protection against impacts, water ingress, and dust increases the device's service life.
The LCD screen is located on the control panel of the body. The display features 5 digits with an indication size of 8*21 mm. The button control panel is made airtight so that the buttons can be pressed with wet hands. The user interface consists of 4 buttons, allowing for quick mastery of all device functions. The electronic scales are powered via a USB COM cable.
You can order the packing tabletop scales on the MERTECH website. When placing an order through the manufacturer's website, the lowest price is available. Delivery of orders is conducted throughout Armenia.
| Type of scales | Packaging |
|---|---|
| Discreteness | 5 gr |
| Minimum weight | 100 gr |
| Number of keys | 4 |
| Weighing limit | 32 kg |
| Platform size | 325*275 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | No |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 325*350*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 4.75 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
