| Type of scalesPackaging | Discreteness2 gr | Minimum weight40 gr |
| Number of keys4 | Weighing limit15 kg | Platform size325*275 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |

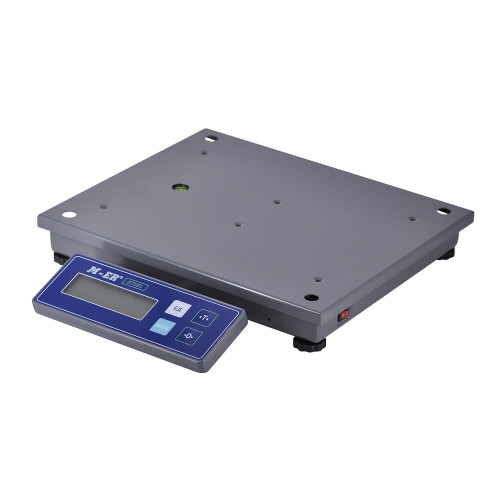

The M-ER 224 F-15.2 STEEL LCD USB desktop scales without a battery operate when connected to the mains. The absence of a battery allows for a reduction in the weight of the case and lowers the cost of the device. This model is suitable for weighing goods in factories, warehouses, stores, or for selling ready-made dishes by weight. The device can be placed in the sales area for control weighing.
Advantages of the Model
The weighing scales are designed to weigh batches with a weight of up to 15 kg. The division price during operation is 2 grams. The metrological characteristics correspond to Class III accuracy according to GOST. Each device undergoes mandatory calibration, which is confirmed by a certificate.
Advantages of the weighing model:
- option to select kilograms or pounds in settings;
- support for CAS-M (Passive) and POS2-M protocols;
- advanced load cell with 7,000 divisions;
- protection system against short-term overloads;
- double galvanization of metal components.
The device can operate in either normal weighing mode or weight fixation mode. A self-diagnostic system is provided. During weighing, sound and visual indicators operate. The simple control interface is easy to interact with.
Design Characteristics
The basis of the device's construction is a reliable metal frame. The housing is made of metal and plastic. The weighing platform, measuring 325*275 mm, is made of stainless steel. The mechanism is reliably protected from impacts, dust, and water ingress.
An LCD screen is installed on the control panel, attached to the device's housing. The screen consists of 5 digits in an 8*21 mm format. The control panel is completely sealed, and it can be operated with wet hands. Four buttons are used to activate the modes. The device can be connected to the mains via a USB COM cable.
Autonomous operation is provided by a high-capacity battery. A USB COM cable for charging the device is included in the set.
You can buy the weighing scales at a low price on the MERTECH company website. The equipment will be delivered to any region of Armenia.
| Type of scales | Packaging |
|---|---|
| Discreteness | 2 gr |
| Minimum weight | 40 gr |
| Number of keys | 4 |
| Weighing limit | 15 kg |
| Platform size | 325*275 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | No |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 325*350*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 4.75 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
