| Type of scalesPackaging | Discreteness5 gr | Minimum weight100 gr |
| Number of keys4 | Weighing limit32 kg | Platform size300*200 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |

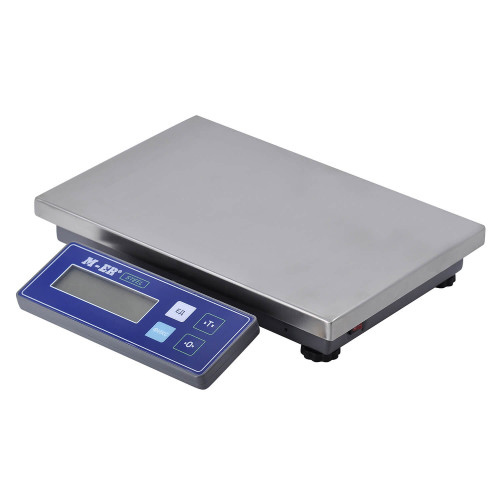

The electronic scales M-ER 224 AFU-32.5 STEEL LCD USB with a weighing platform area of 300*200 mm do not take up much space on the table. They can be used in areas where there is limited space for equipment installation. The model is suitable for weighing any products and can be used for control weighing. The body includes a battery for autonomous operation, which can be charged via a USB port.
Advantages of the model
The desktop scales are suitable for weighing retail and wholesale batches with a weight of up to 32 kg. The division price is 5 grams. The parameters of the model comply with class III accuracy according to GOST, which is confirmed by the calibration certificate. The device is suitable for use in a warehouse, factory, store sales area, café, or restaurant.
What are the advantages of this model:
- choice of measurement units: kilograms or pounds;
- data transfer protocols POS2-M and CAS-M (Passive);
- sensitive load cell with 7,000 divisions;
- protection system against short-term overloads;
- double galvanization of steel parts.
The device supports 2 basic modes: simple weighing or mass fixation, as well as a self-diagnosis function. The working process is accompanied by audible and visual indications. Staff training on how to use the scales does not take much time.
Construction characteristics

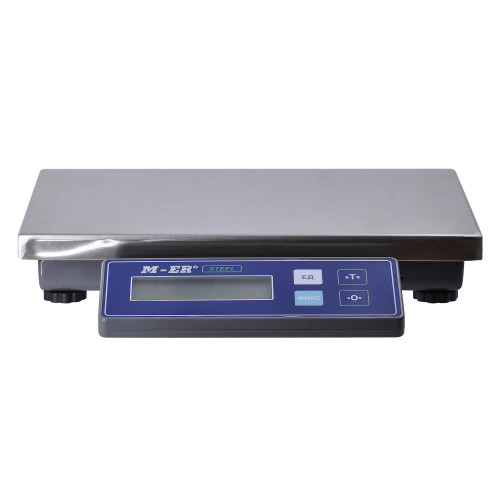

The display of the desktop scales is located on the control panel, which is attached to the platform. The panel with 4 buttons is completely waterproof, allowing it to be operated with wet hands. The LCD display contains 5 digits of indication measuring 8*21 mm.
The design is based on a rigid metal frame. The body panels are made of plastic and metal. The weighing platform is made of stainless steel. The case is protected from impacts, water, and dust ingress.

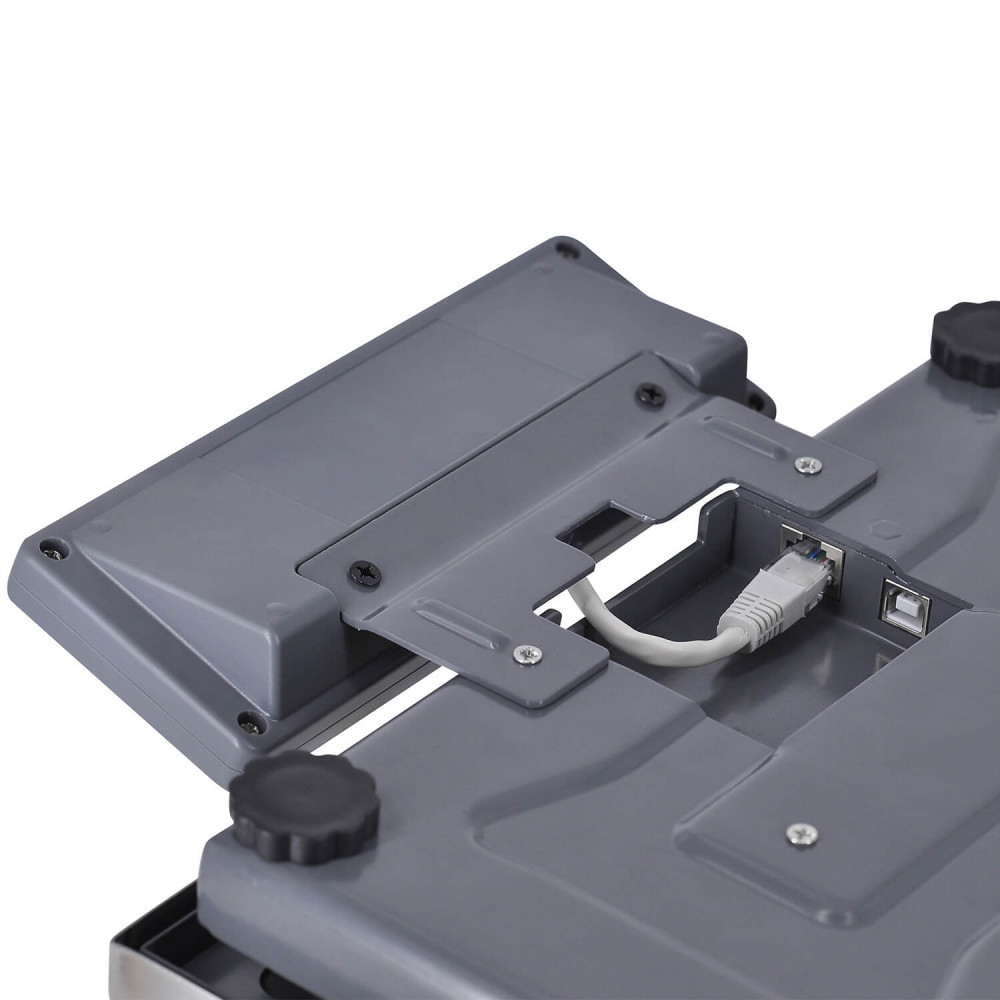

The device is powered by a high-capacity battery. The set includes a USB COM cable for charging the device.
On the MERTECH company's website, you can purchase desktop scales at the lowest price. Delivery is carried out to any point in Armenia.
| Type of scales | Packaging |
|---|---|
| Discreteness | 5 gr |
| Minimum weight | 100 gr |
| Number of keys | 4 |
| Weighing limit | 32 kg |
| Platform size | 300*200 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnostic mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | Optional |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 300*280*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 3.15 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
