| Type of scalesPackaging | Discreteness2 gr | Minimum weight40 gr |
| Number of keys4 | Weighing limit15 kg | Platform size300*200 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |
The M-ER 224 AFU-15.2 STEEL LCD USB bench scale with a reduced platform of 300*200 mm is suitable for places where space is limited for equipment installation. This model can be used for pre-sale packaging of goods or as control scales. The device operates on a battery. A USB cable is used for battery recharging.
Advantages of the model
The equipment is suitable for weighing goods in warehouses, in production, and in retail stores. The device is classified as class III accuracy according to GOST standards. The maximum measurement capacity is 15 kg. The scale increments are 2 grams. Compliance with the stated specifications is confirmed by a calibration certificate.
Advantages of the model:
- weighing in kilograms or pounds;
- POS2-M and CAS-M (Passive) protocols;
- sensitive strain gauge with 7,000 divisions;
- protection against short-term overloads;
- double galvanization of steel panels.
The device can operate in normal weighing mode or weight locking mode, as well as perform self-diagnostics. The visual and light indication system simplifies the operator's work.
Design Features

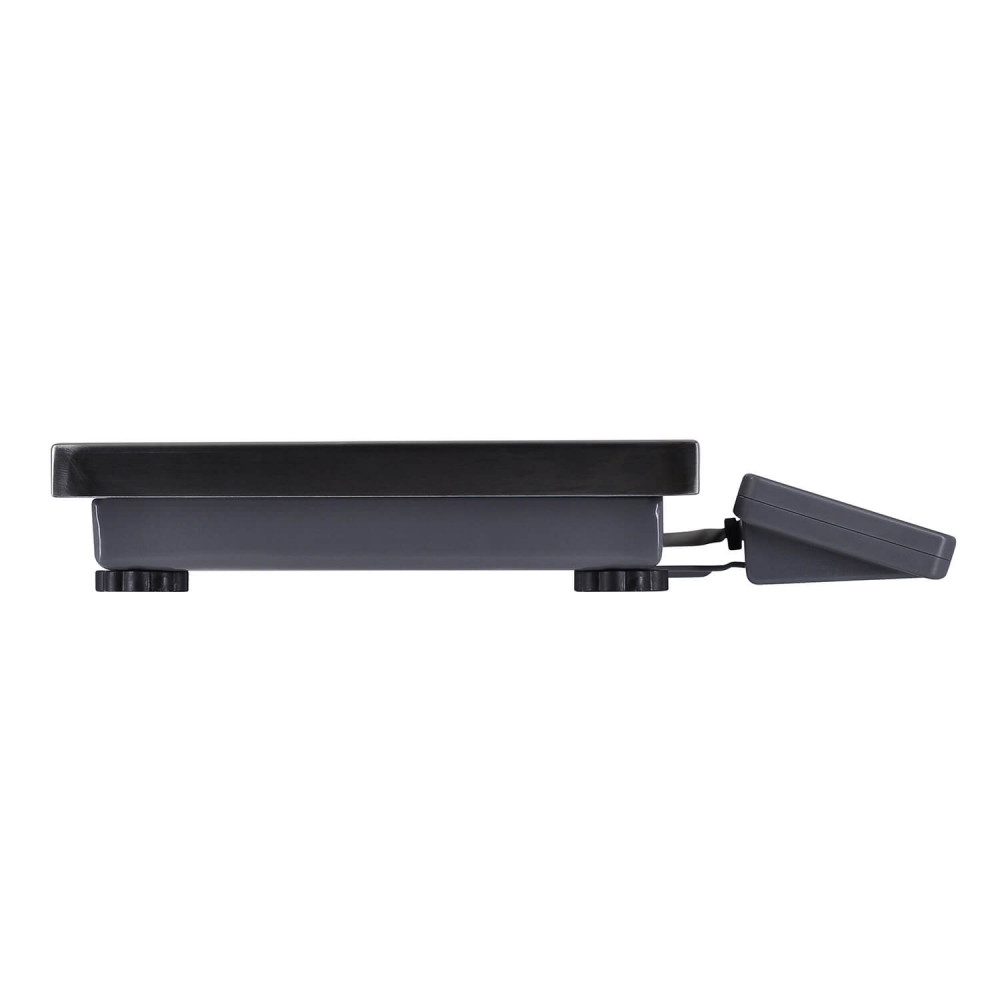

The M-ER 224 AFU-15.2 STEEL model features a rectangular body with an LCD screen without a stand. The base of the construction is a strong and stable frame made of steel. The body is made of metal and plastic, while the weighing platform is made of stainless steel. The structure is reliably protected against external factors.

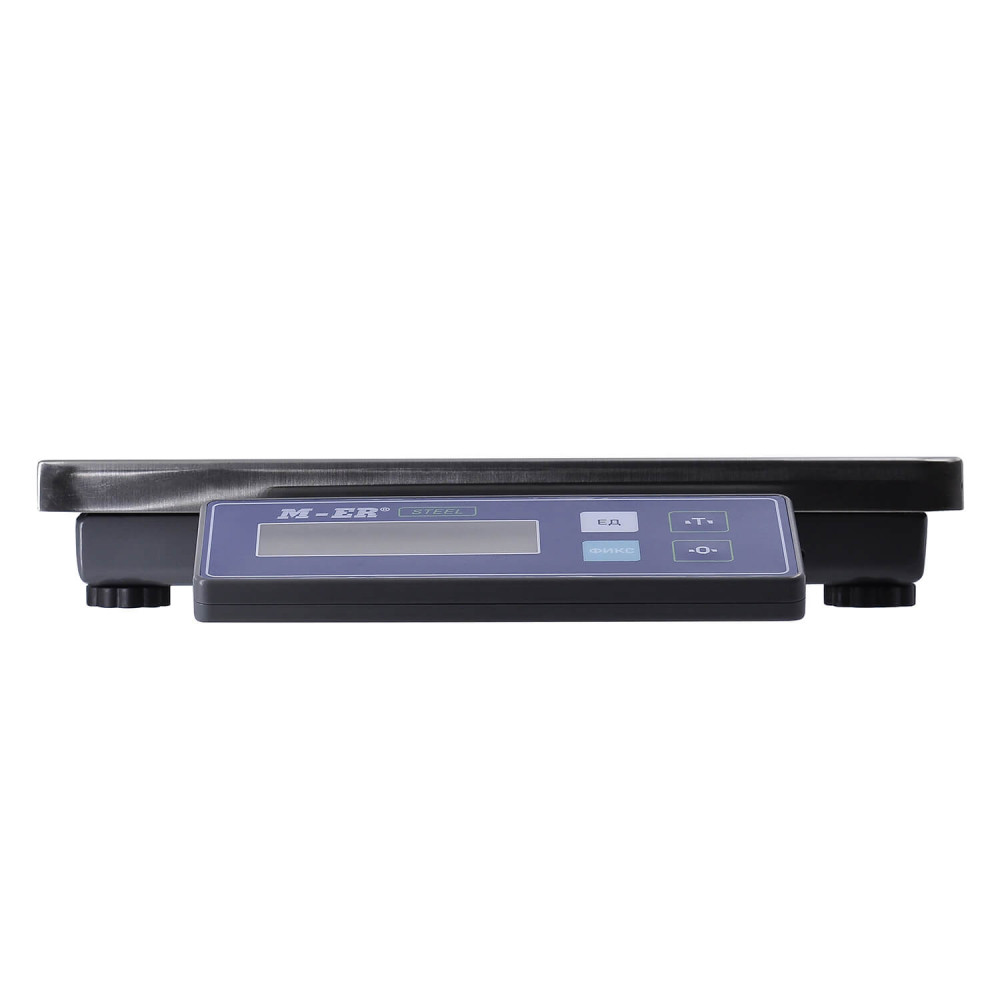

The control panel is completely sealed. It is operated using 4 buttons. Learning the working process does not take much time. Results are displayed on an LCD screen with 5 digits and an indication size of 8*21 mm. The device operates on a powerful battery. A full battery charge lasts for a long time. A USB (COM) cable is included in the package.
You can purchase electronic scales at the lowest price on the MERTECH website. Delivery of orders is carried out throughout Armenia.
| Type of scales | Packaging |
|---|---|
| Discreteness | 2 gr |
| Minimum weight | 40 gr |
| Number of keys | 4 |
| Weighing limit | 15 kg |
| Platform size | 300*200 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | Optional |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 300*280*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 3.15 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
