| Type of scalesPackaging | Discreteness5 gr | Minimum weight100 gr |
| Number of keys4 | Weighing limit32 kg | Platform size325*275 |
| ExecutionTabletop | VerificationYes | Accuracy classAverage (III) |

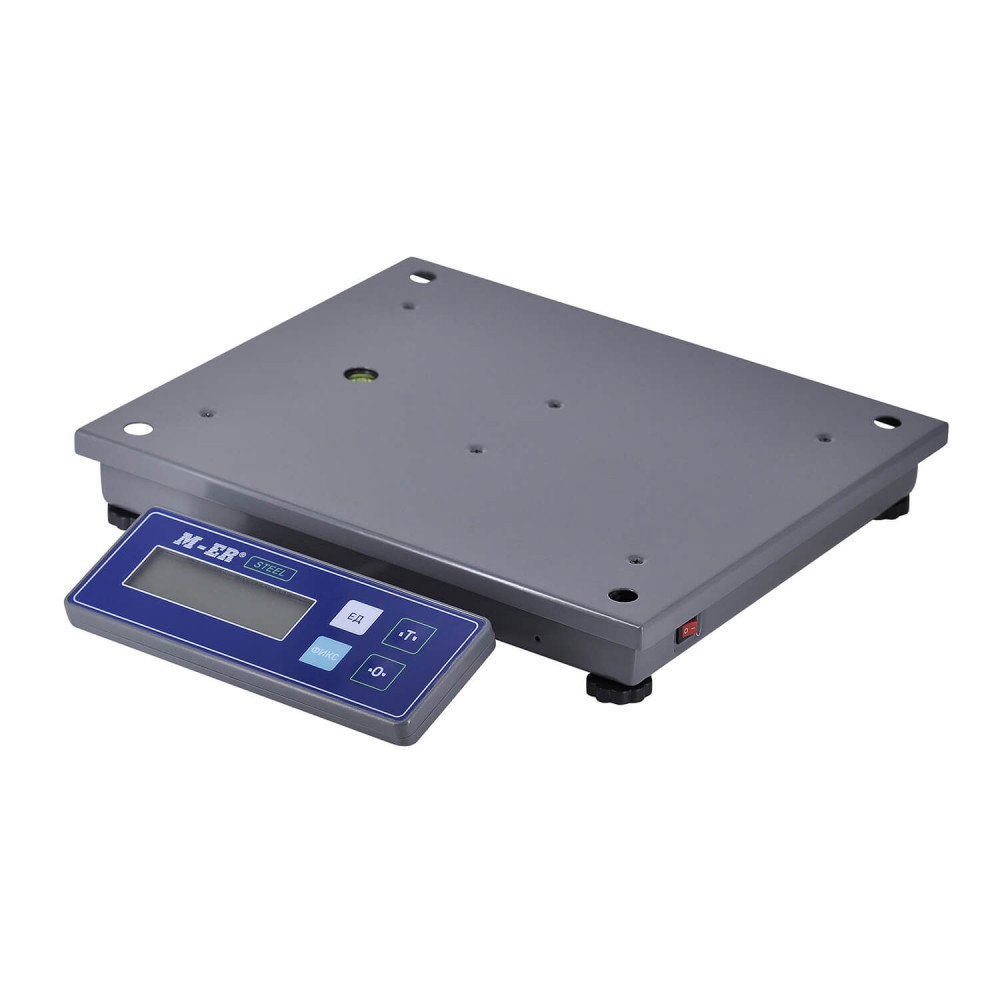

The desktop weighing model M-ER 224 AF-32.5 STEEL LCD USB is suitable for weighing products in a store or warehouse. They are designed for weighing small wholesale batches weighing up to 32 kg. Working with the large weighing platform measuring 325*275 mm is convenient. The device connects to the cash register and charges the battery via a USB cable.
Advantages of the Model
The weighing equipment meets the III class accuracy criteria according to GOST. The declared characteristics are confirmed by a calibration certificate. The device can be used for working with any goods. The device can be installed in the sales area as a control scale.
Advantages of the weighing equipment:
- weighing in kilograms or pounds;
- POS2-M and CAS-M (Passive) protocols;
- sensitive load cell with 7,000 divisions;
- protection against short-term overloads;
- double galvanization of steel panels.
The electronic scales operate in simple weighing or mass recording mode. The minimum measurement increment is 5 grams. Visual and audible indicators during weighing simplify the operator's work. The device can perform self-diagnostics.
Design Features
The M-ER 224 AF-32.5 STEEL model has a classic shape for desktop scales. The LCD display is mounted on the body. The design features a rigid metal frame, to which external panels made of metal and plastic are attached. The weighing platform is entirely metal. The body design reliably protects the electronics from impacts.
An airtight keyboard with 4 buttons is used for control. The working interface is easy to master, and training new employees will not take much time. Results are displayed on an LCD screen with 5 digit indicators (character height 8*21 mm).
The equipment can operate from the mains or from a battery. The energy-efficient battery ensures long operation from a single charge. A USB (COM) cable is included in the package.
You can buy electronic scales at a low price from the manufacturer on the MERTECH company's website. We will deliver the equipment for business to any point in Armenia.
| Type of scales | Packaging |
|---|---|
| Discreteness | 5 gr |
| Minimum weight | 100 gr |
| Number of keys | 4 |
| Weighing limit | 32 kg |
| Platform size | 325*275 |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | Tabletop |
| Operating modes | Weighing mode; Weight fixing mode; Sound and visual indication; Self-diagnosis mode |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound |
| Level | Yes |
| Battery | Optional |
|---|---|
| Nutrition | from USB 5V, 0.5A |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | +5°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of displays | 1 |
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| CAS-M (Passive) | Yes |
|---|---|
| POS2-M | Yes |
| Interfaces | USB |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 325*350*46 |
| Platform material | Stainless steel |
| Body material | Metal; plastic |
| Weight | 4.75 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Moisture protection | Sealing the control panel |
| Equipment | Scales; Warranty card; Operation manual; USB(COM) cable |
|---|
-
