| Type of scalesPackaging | Discreteness5 gr | Minimum weight100 gr |
| Weighing limit32 kg | Platform size330*255 mm | ExecutionTabletop |
| VerificationYes | Accuracy classAverage (III) | Load cells, pcs.1 |

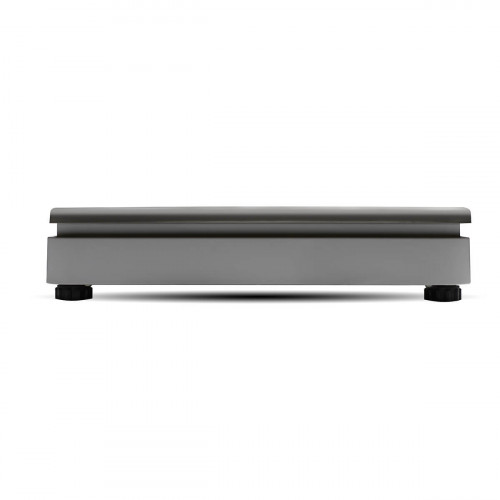

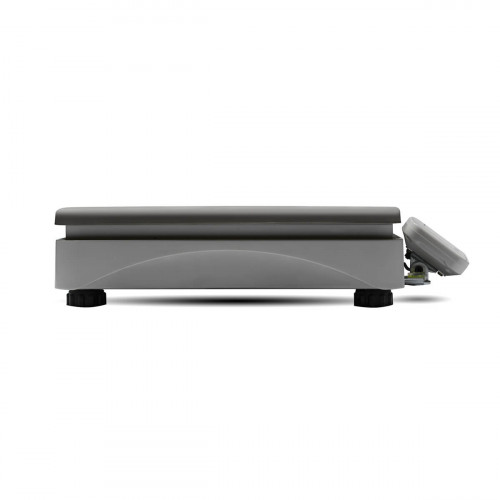

The M-ER 222 F-32.5 "Connect" LCD USB and RS-232 scales feature an ultra-thin platform. This model can be used for integration into checkout counters or boxes by removing the display. The design includes 2 interfaces for connecting to a POS system: RS-232 and USB-COM. Weighing results are displayed on an external LCD screen (with backlight).
Design Features
The 222 F "Connect" model is compact in size, with dimensions of 330*320*80 mm, and a loading platform size of 330*255 mm. It is one of the thinnest models available on the market. The catalog offers 2 variants of the model, distinguished by technical specifications:
- M-ER 222 F-15.2. Maximum load – 15 kg. Minimum – 40 g. Division price – 2 g.
- M-ER 222 F-32.5. Maximum load – 32 kg. Minimum – 100 g. Division price – 5 g.
The accuracy class of weighing is III (for trade). The stated specifications are confirmed by state verification. The model operates according to the CAS-M protocol. In addition to simple weighing, a tare weight subtraction mode is available.
Integrated scales save space on the cashier's table and speed up customer service. Weighing results are transmitted to the POS computer and added to the cash receipt. The cashier only needs to indicate the type of product. All other operations are performed automatically.
Connection and Setup
A flat, vibration-free surface is suitable for installation. To ensure accurate measurements, the platform should be positioned horizontally. The position of the loading platform can be adjusted with vertical supports.
Connection to the POS computer is made via RS-232 and USB-COM. Cables are included in the package. Synchronization with most online cash registers and smart terminals occurs using free drivers. We guarantee compatibility with Mercury, Evotor, Atol, MTS, Shtrikh, and other brand equipment.
The M-ER 222 F-32.5 "Connect" LCD USB and RS-232 operates from the electrical network. After the scales are installed and connected, the LCD screen will undergo a verification process. When the readings reach "0", the device will be ready for operation. The stabilization indicator will turn on automatically.
Place an Order
You can purchase the M-ER 222F "Connect" commercial scales at the manufacturer's price. We sell weighing equipment without markup. Orders are delivered within Yerevan and throughout Armenia. Free consultations on installation, connection, and setup of the scales are available to buyers. To purchase weighing equipment, leave a request on the website.
| Type of scales | Packaging |
|---|---|
| Discreteness | 5 gr |
| Minimum weight | 100 gr |
| Weighing limit | 32 kg |
| Platform size | 330*255 mm |
| Execution | Tabletop |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Tare sampling range | The whole range |
|---|---|
| Units of measurement | Gr; kg |
| Self-diagnostic mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For connection to a POS computer, For food products |
| Verification | Yes |
| Nutrition | via USB |
| Permissible humidity | 85% |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | -10°C ~ +40°C |
| Display type | LCD |
|---|---|
| Number of indication digits | 5 |
| Character size, mm | 8*21 |
| Interfaces | RS-232; USB |
|---|
| Overall dimensions (WxDxH), mm | 340*240*77 |
|---|---|
| Platform material | Stainless steel |
| Body material | Plastic, metal |
| Weight | 3.75 kg |
| Keyboard type | Industrial sensor |
| Overload protection | Sound and visual notification |
| Corrosion protection | Galvanization |
| Moisture protection | IP 54 |
| Adjustable supports | Yes |
-
