| Type of scalesPackaging | Discreteness5 gr | Minimum weight100 gr |
| Number of keys4 | Weighing limit32 kg | Platform size325*315 mm |
| ExecutionBuilt-in | VerificationYes | Accuracy classAverage (III) |
The M-ER 221 F Install model is one of the thinnest built-in electronic scales available on the market. They can be integrated into cash boxes or tables. This model can also be used as a standalone device. Weight range: from 100 grams to 32 kilograms.
Design Features
The housing is made of durable metal. The platform is made of food-grade stainless steel. Dimensions of the housing: 330*320*80 mm. Platform size: 330*320 mm. The load cell has OIML certification. The side panel features an LED display and tare and zeroing buttons. These elements duplicate the software functionality of the scales. As the scales are built-in, the main functionality is implemented at the software level.

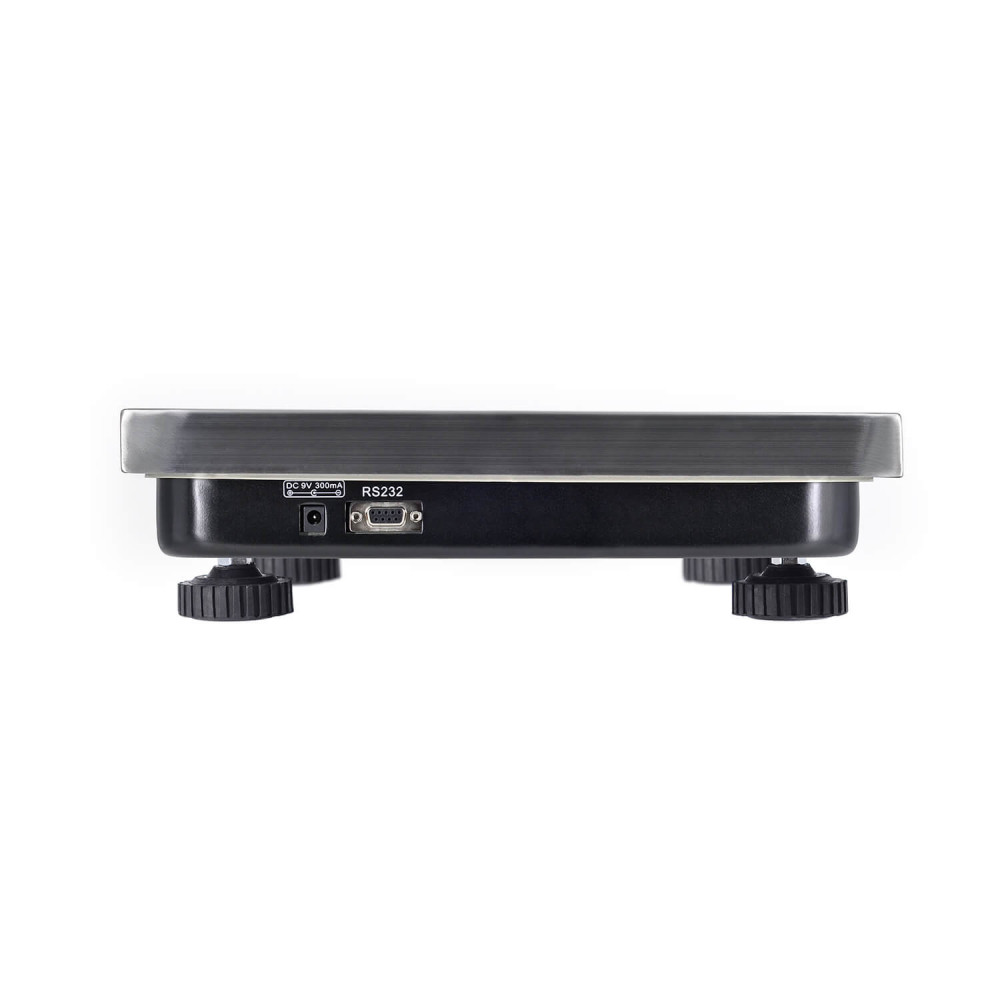

The M-ER 221 F Install scales have several connectivity interfaces. The RS-232 interface can be used for connection to a POS system.
Electronics and Software
The scales synchronize with the computer using CAS-M and POS-2M protocols. The device is compatible with the 1C system and most online cash registers. Drivers for synchronization can be downloaded for free from the manufacturer's website.
The device can synchronize with OPOS and JavaPos. The electronics are compatible with Windows and Linux OS. Older versions of Windows are supported: 7, 8, XP. A virtual COM port driver is required for these OS. It can be found on the manufacturer's website under the "Download" tab.
No driver is required for Windows 10. The connection to Linux is done through cdc_acm. This is a standard module that automatically loads when the scales are connected to Ubuntu.
Place an Order
In the online store, you can purchase the M-ER 221 F Install scales at a low price. Before buying, you can specify the configuration of the model. We will select the protocol for the POS system and assist you in finding and installing the software (if necessary). Order delivery is available in Yerevan and throughout Armenia. Please leave a request on the website to start cooperation.
| Type of scales | Packaging |
|---|---|
| Discreteness | 5 gr |
| Minimum weight | 100 gr |
| Number of keys | 4 |
| Weighing limit | 32 kg |
| Platform size | 325*315 mm |
| Execution | Built-in |
| Verification | Yes |
| Accuracy class | Average (III) |
| Load cells, pcs. | 1 |
| Height adjustment, mm | 25 |
| Operating modes | Simple weighing; Weight fixation; Selection of units of measurement; Accounting for tare weight |
|---|---|
| Tare sampling range | The whole range |
| Units of measurement | Kg, Pound, Ounce |
| Self-diagnostic mode | Yes |
| Visual indication | Yes |
| Level | Yes |
| Guarantee | 2 years |
|---|---|
| Applications of scales | For connection to 1C, For a store, For connection to a POS computer, For food production, For food products |
| Battery | No |
| Verification | Yes |
| Nutrition | 9V-100mA (1.9m) |
| Permissible humidity | up to 85% at 40°C, without moisture condensation |
| Atmospheric pressure | 630...800 mm Hg |
| Operating temperature | 5°C ~ +40°C |
| Number of indication digits | 6 |
|---|---|
| Character size, mm | 8x15 |
| CAS-M (Active) | No |
|---|---|
| CAS-M (Passive) | Yes |
| POS2-M | Yes |
| Interfaces | RS-232 |
|---|
| Color | Black |
|---|---|
| Overall dimensions (WxDxH), mm | 325x315x90 |
| Platform material | Stainless steel |
| Body material | Metal |
| Weight | 5.17 kg |
| Keyboard type | Push-button |
| Overload protection | Sound and visual notification |
| Corrosion protection | Metal elements are protected from corrosion by painting with anti-corrosion paint |
| Moisture protection | No |
| Adjustable supports | Yes |
| Equipment | Platform, Warranty card, Operation manual, RS232 cable (DB9f - DB9m - 1.9m) |
|---|
-
